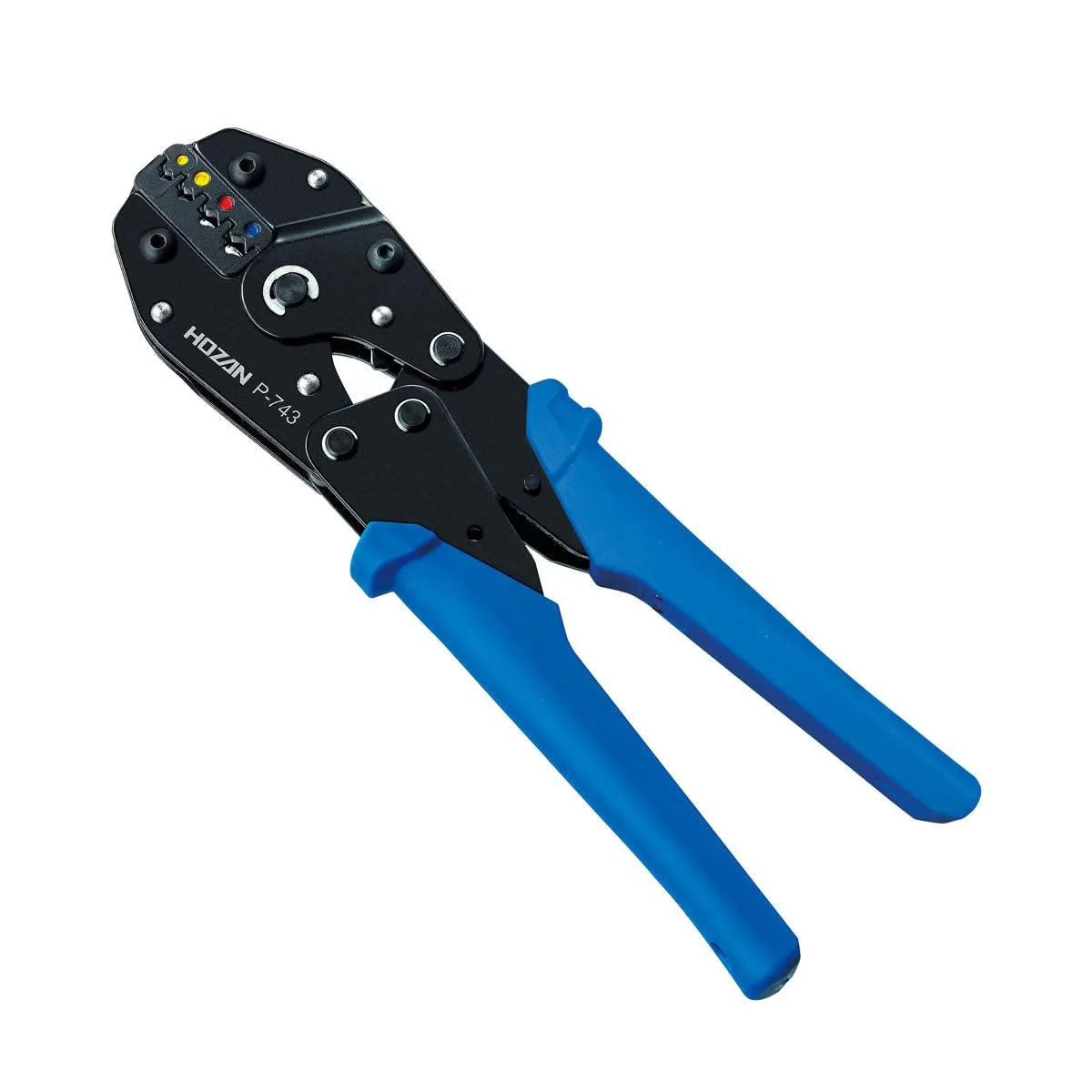

Hozan Crimping Pliers Crimping Tool for Insulated Terminals P-743

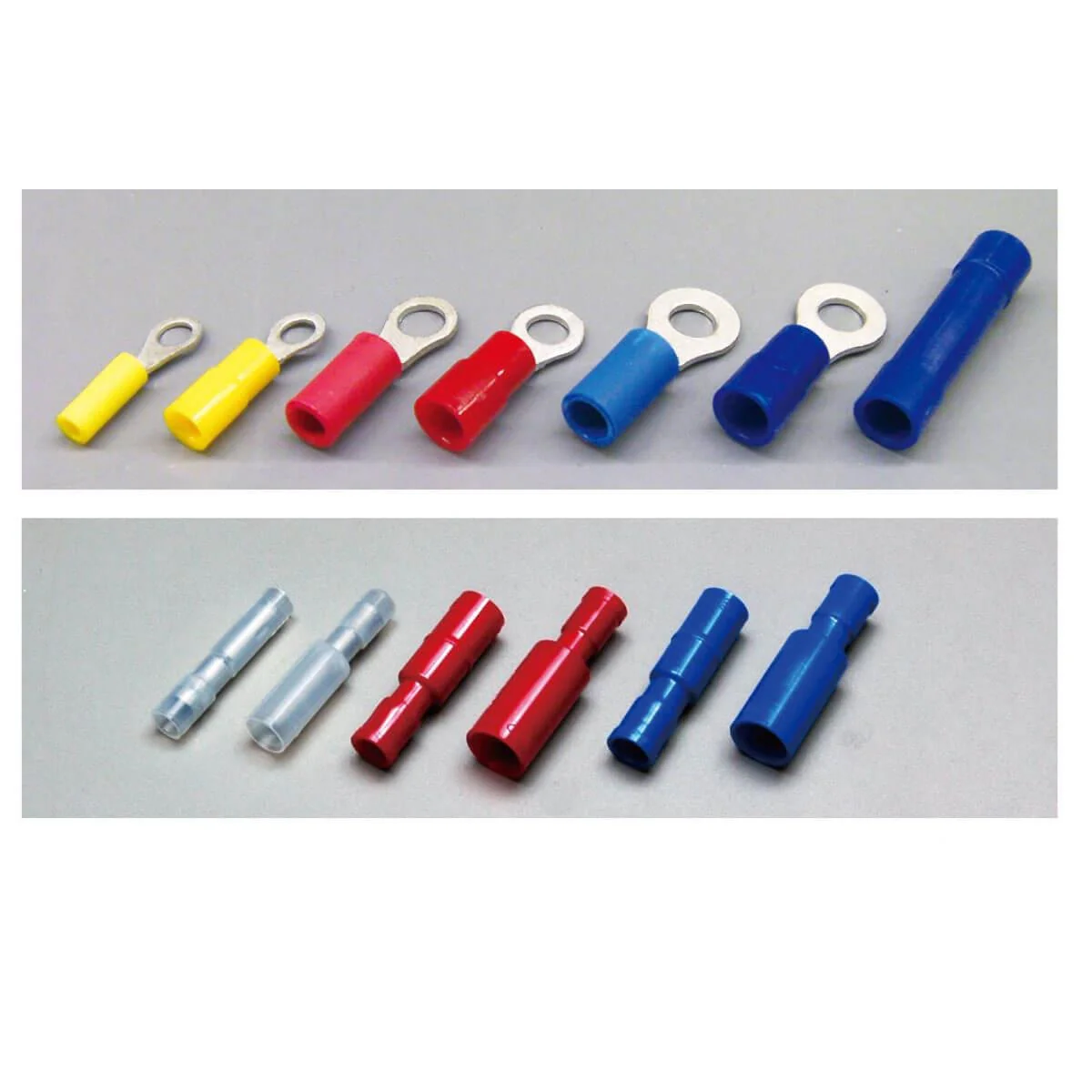

These crimping pliers are suitable for insulated terminals and connectors. They can be used for both straight-type and tube expansion-type terminals.

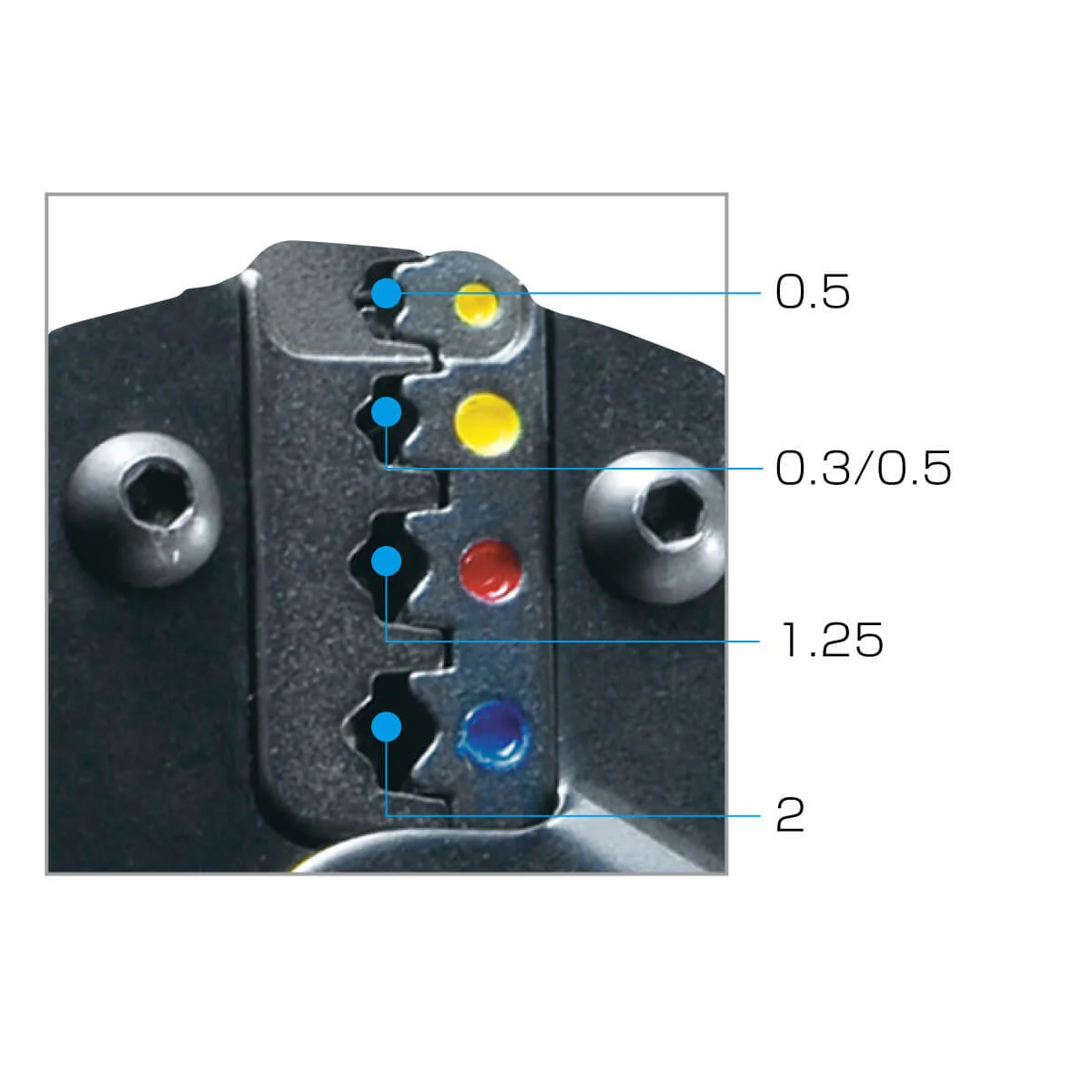

You can freely adjust the opening width of the handles according to the working space even in confined areas. Their four different crimping cavities also allow you to implement a wide range of tasks.
Instructions
To release the ratchet mechanism, squeeze the handles until they are opened automatically.
Place a terminal in the cavity, then lightly squeeze the handles to hold the terminal. After this step, you can insert the stripped wire into the terminal.
Squeeze the handles until the ratchet becomes free.
Details
- Model number: P-743

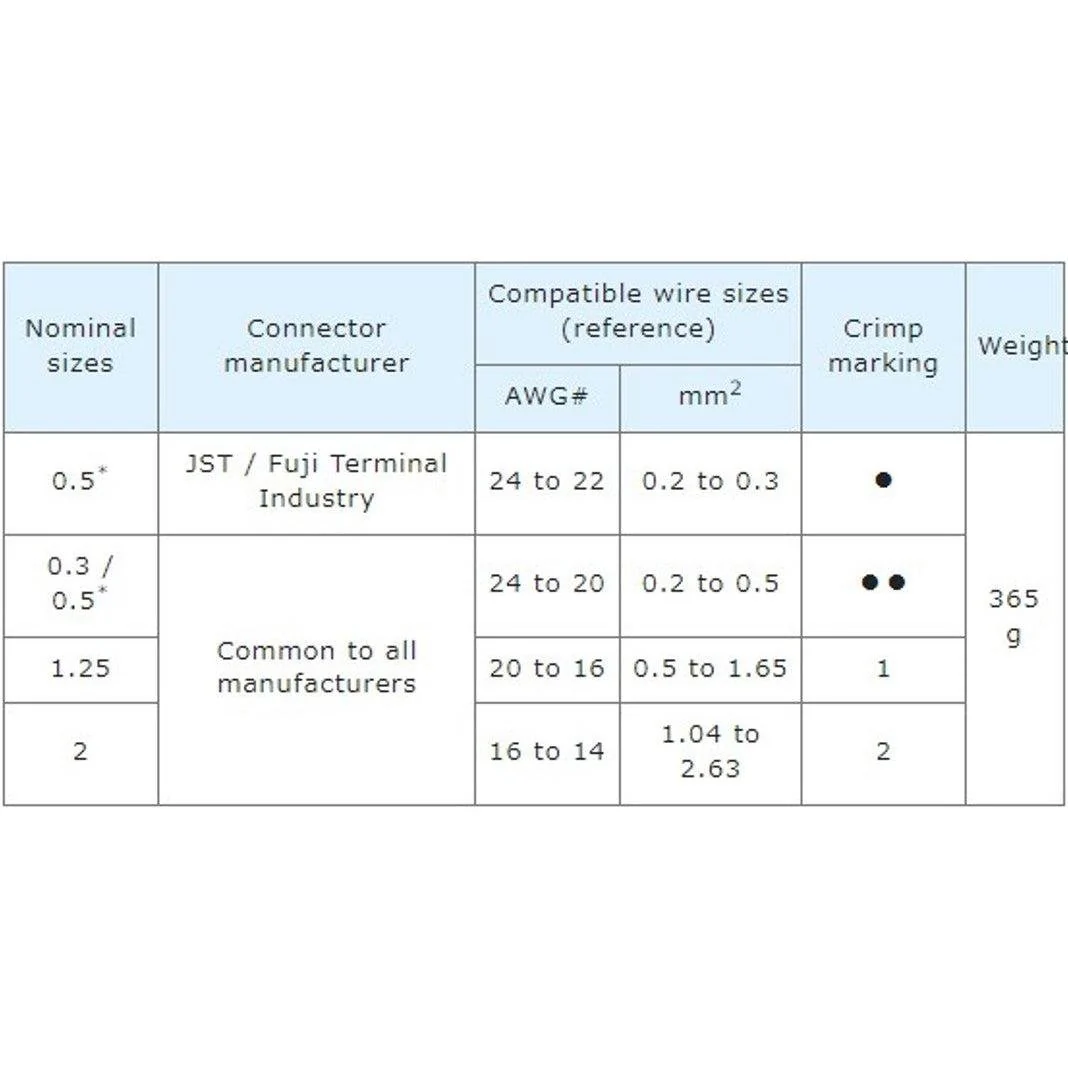

- Applicable wire size: AWG 24~#14

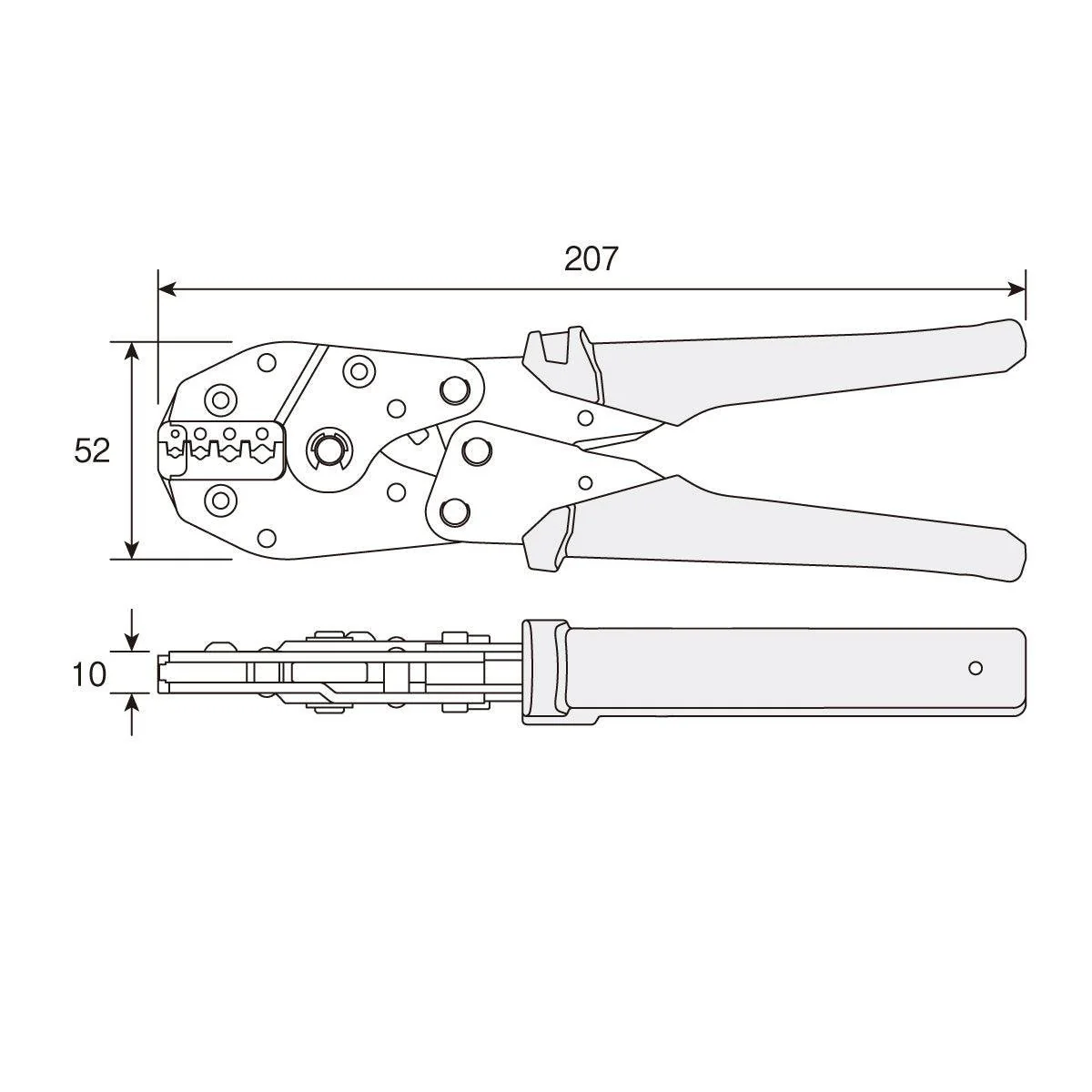

- Size (W×H×D): 207 × 52 × 10mm
- Weight: 365g
- Notes: This product is uninsulated, so do not cut a live wire. Do not use this product beyond its intended capacity & purpose.
- Made in Japan
Description
These crimping pliers are suitable for insulated terminals and connectors. They can be used for both straight-type and tube expansion-type terminals.
You can freely adjust the opening width of the handles according to the working space even in confined areas. Their four different crimping cavities also allow you to implement a wide range of tasks.
Instructions
To release the ratchet mechanism, squeeze the handles until they are opened automatically.
Place a terminal in the cavity, then lightly squeeze the handles to hold the terminal. After this step, you can insert the stripped wire into the terminal.
Squeeze the handles until the ratchet becomes free.
Details
- Model number: P-743
- Applicable wire size: AWG 24~#14
- Size (W×H×D): 207 × 52 × 10mm
- Weight: 365g
- Notes: This product is uninsulated, so do not cut a live wire. Do not use this product beyond its intended capacity & purpose.
- Made in Japan
